Liverpool Canal Link, March 2009 - 3. Princes Dock

Photos showing progress on the construction of the Liverpool Canal Link, May 2008. [Page 1, Page 2, Page 3, Page 4]

(Please note: the images on these pages are quite large so the page may be slow to load for those not using broadband.)

These photos cover the route of the new canal link in sections, from south to north, from Canning Dock to Trafalgar Dock.

Liverpool canal link

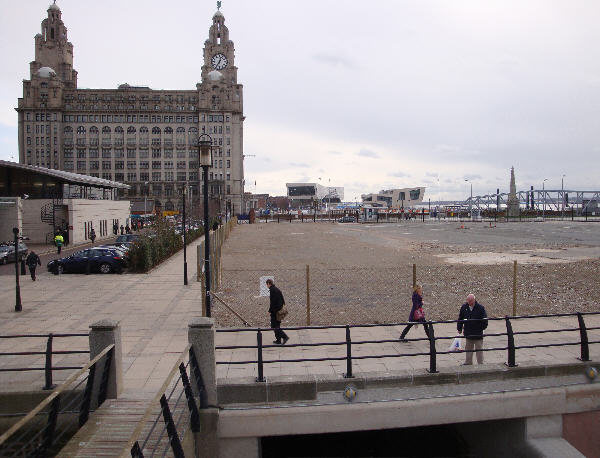

From the Pier Head, the canal passes through a longer tunnel beneath St Nicholas Place and beneath this site between the Crowne Plaza Hotel and the ferry terminal, to emerge at Princes Dock.
Liverpool canal link

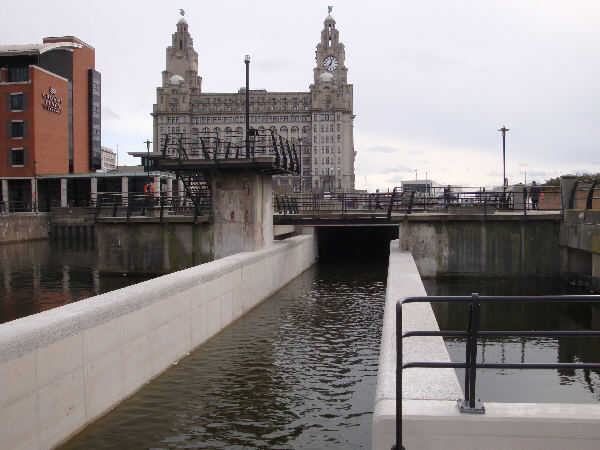

Looking back towards the Liver Building and Pier Head from Princes Dock, showing the canal emerging from the tunnel..
Liverpool canal link

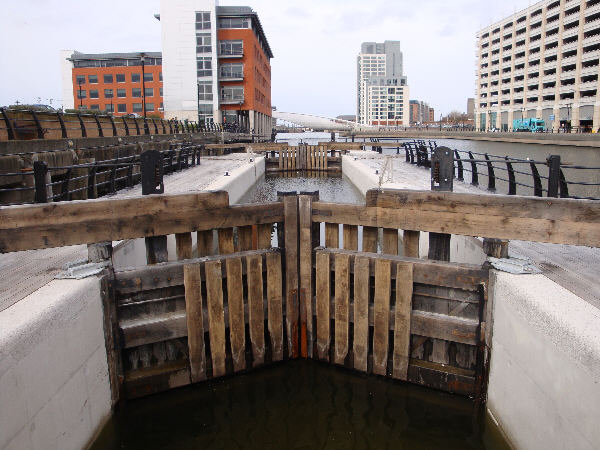

The canal leaves the tunnel and enters a new lock constructed in a corner of Princes Dock. This photo shows the downstream landing area. The lock-side platforms hang out over the water to give an impression of the lock floating. The lock has a rise of only around 1 metre.
Liverpool canal link

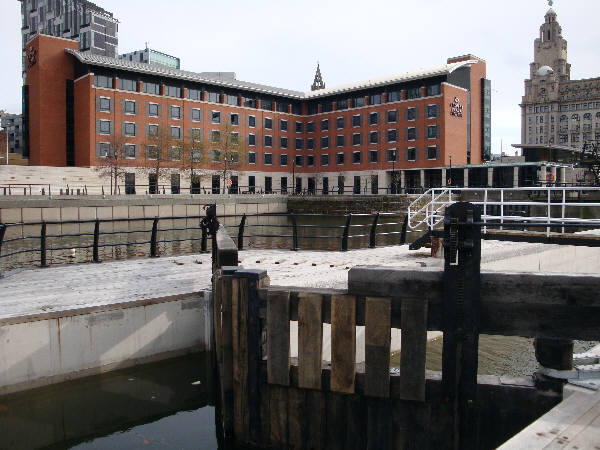

The Crowne Plaza Hotel, overlooking the new lock in Princes Dock.
Liverpool canal link

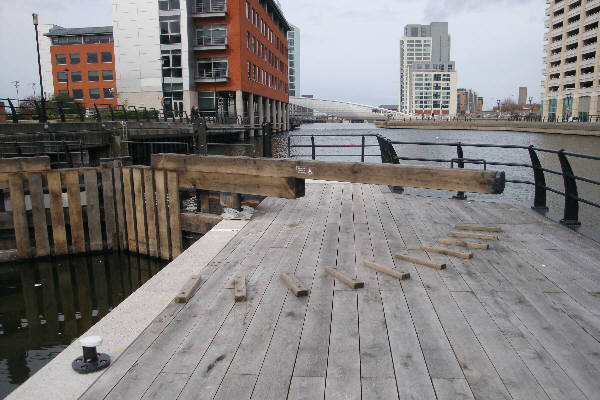

The head gates of the new lock in Princes Dock showing the balance beam sweep on the wooden decking of the lockside.
Liverpool canal link

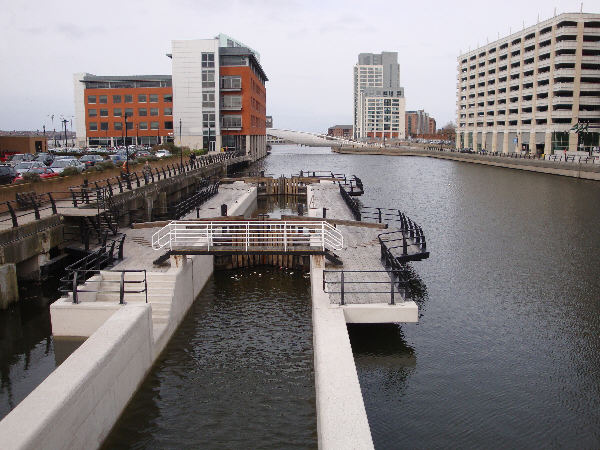

The new lock in Princes Dock.
Liverpool canal link

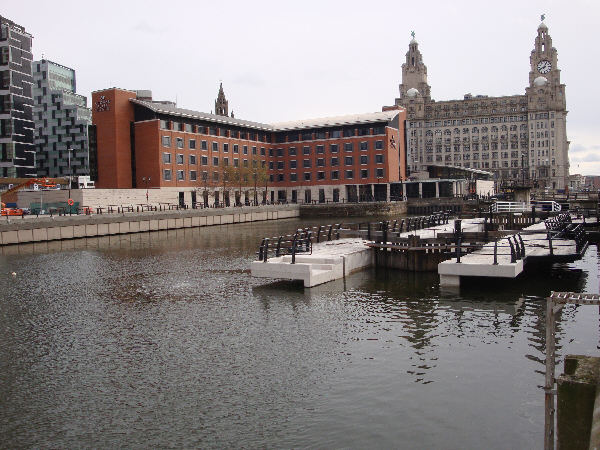

The new lock in Princes Dock, with the Crowne Plaza Hotel and the Liver Building in the background. The tower of St Nicholas, the Parish Church of Liverpool, can just be seen behind the hotel.
Liverpool canal link

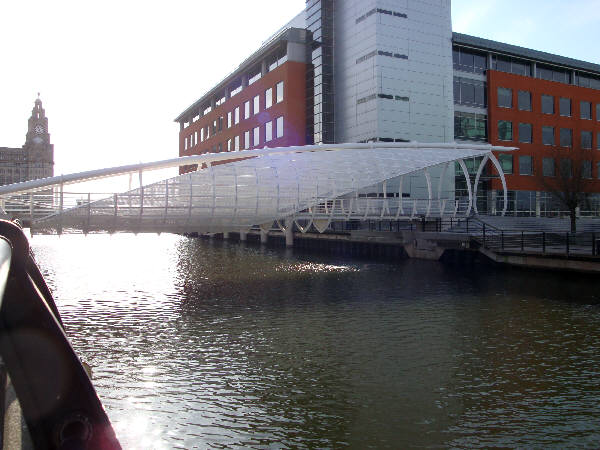

The footbridge that crosses over half way along Princes Dock has now been raised to give navigable headroom.
Liverpool canal link

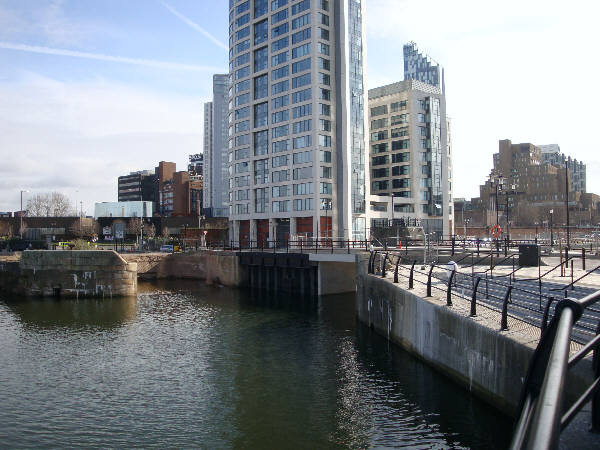

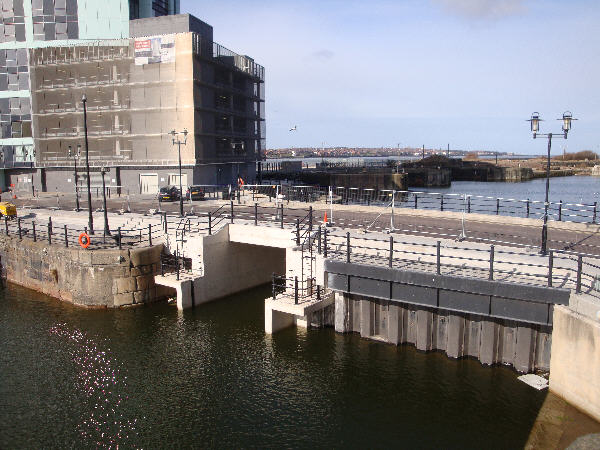

The new bridge at the north end of Princes Dock, leading into Princes Half Tide Dock.
Liverpool canal link
The new bridge at the north end of Princes Dock, leading into Princes Half Tide Dock.
