Huddersfield Narrow Canal
Holme Mill Bridge, Colne Valley

At Holme Mill bridge, a little to the west of Golcar Aqueduct, a new bridge had to be constructed to replace the original swing bridge, which was no longer functional. A temporary roadway was built across the canal a few yards to the west, while the new bridge was built, to maintain access to the mills.

Holme Mill bridge

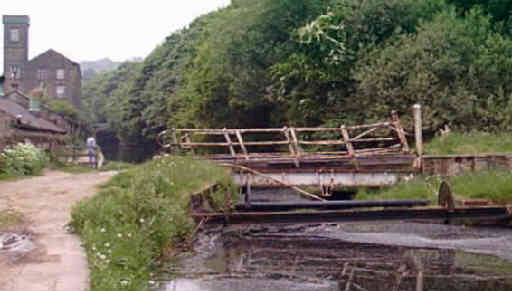

The old swing bridge at Holme Mill before work began.

Holme Mill bridge

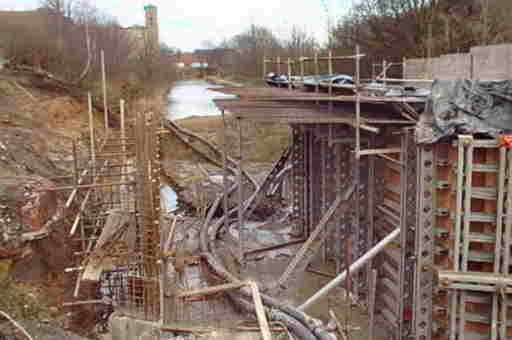

Looking east at Holme Mill to the construction of the replacement bridge. The new bridge, in order to allow boats to pass below, is higher than the old swing bridge, which was at towpath level.

Holme Mill bridge

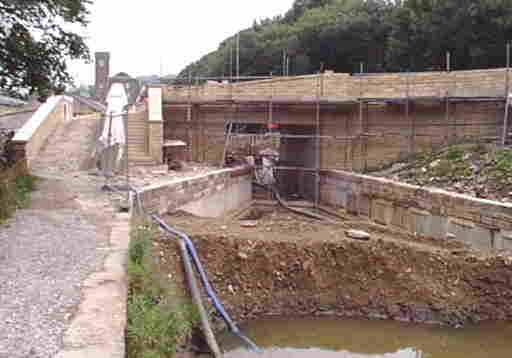

Looking west as construction nears completion.

Holme Mill bridge

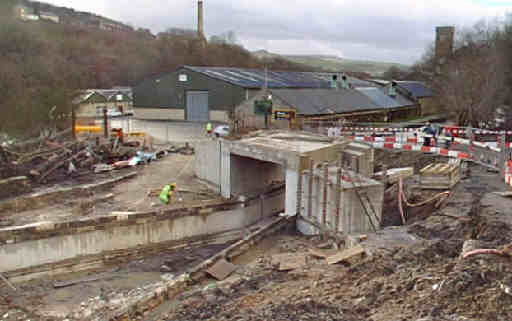

Looking westwards towards the bridge at an earlier stage. A box-culvert tunnel had been constructed. Wing walls and approaching ramps are now needed.

Holme Mill Bridge

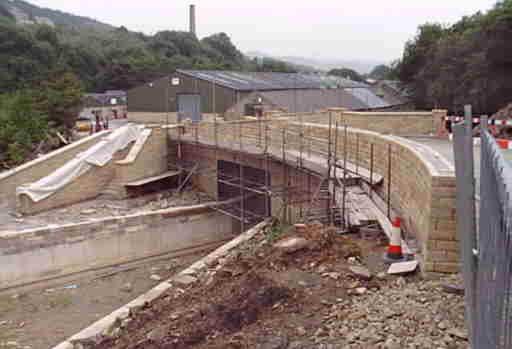

Looking westwards towards Holme Mill Bridge. Steps up from the towpath have now been constructed. The approaches to the bridge have being built up. The walls are being clad with stone. The road has now been diverted across the bridge and the temporary roadway removed.

Holme Mill Bridge

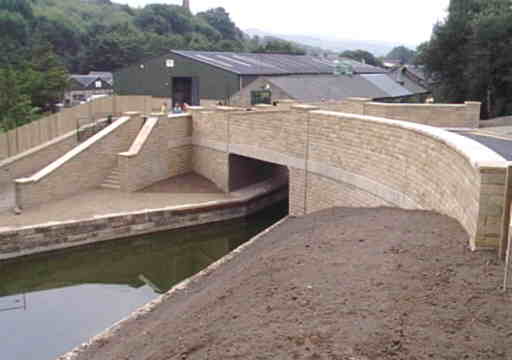

Looking westwards towards completed Holme Mill Bridge.

Holme Mill bridge

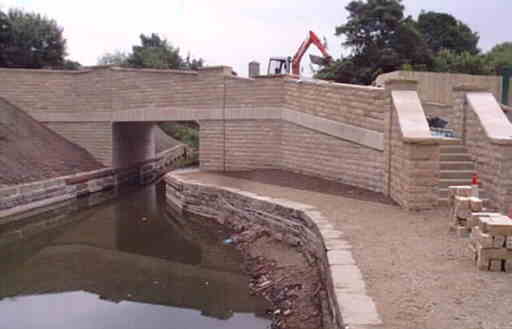

Looking eastwards from the towpath. The wash walls have been clad with stone above the waterline and the towpath has been edged with coping stones.

the old Holme Mill bridge

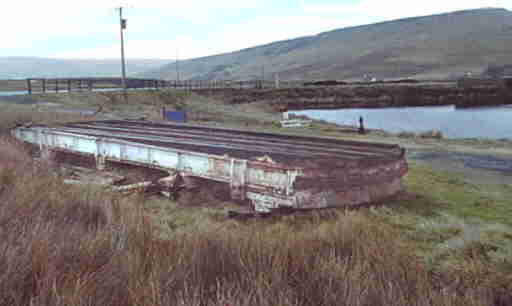

The original Holme Mill bridge was removed from the site and is seen here resting alongside Redbrook Reservoir at Standedge.
